Single Phase Single Pole Socket Type EMI Filter

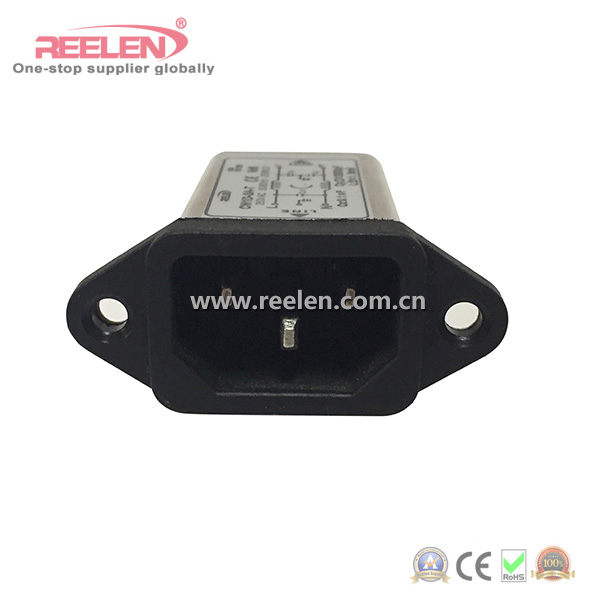

  • 6A Single Phase Single Pole Socket Type EMI Filter (Model: CW1D-6A-T)

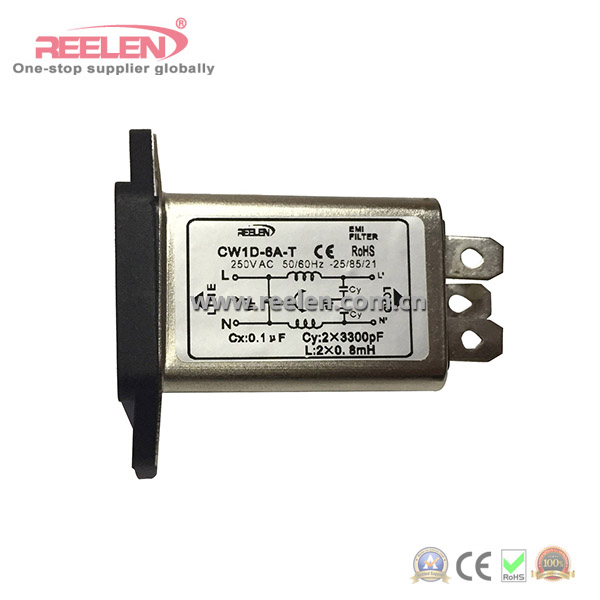

  • 6A Single Phase Single Pole Socket Type EMI Filter (Model: CW1D-6A-T)

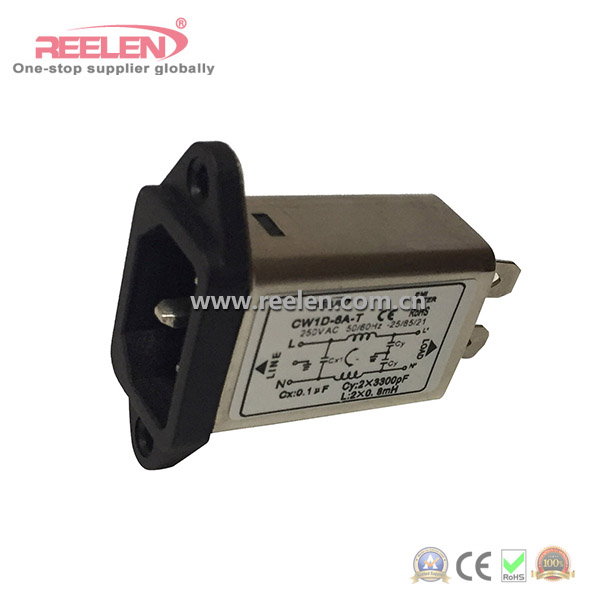

  • 6A Single Phase Single Pole Socket Type EMI Filter (Model: CW1D-6A-T)

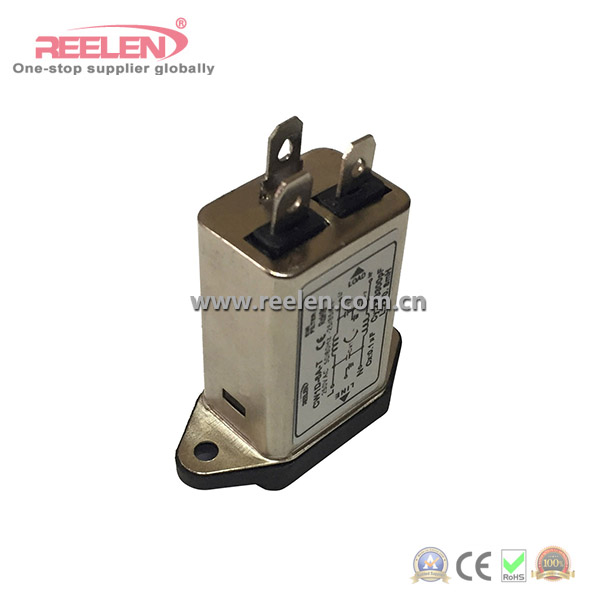

  • 6A Single Phase Single Pole Socket Type EMI Filter (Model: CW1D-6A-T)

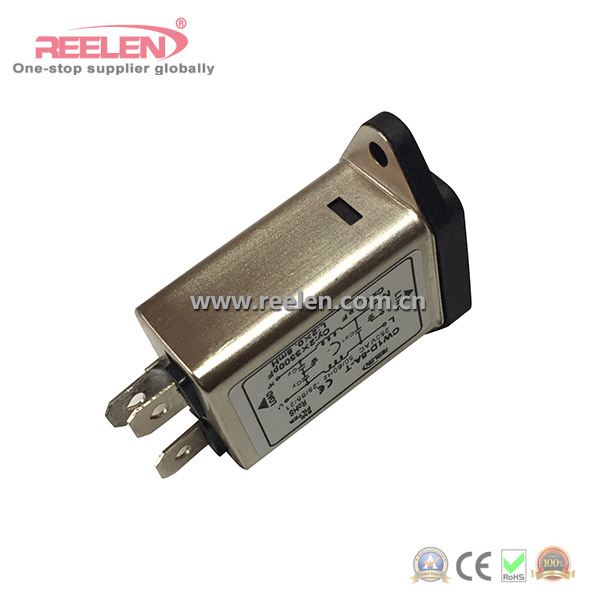

  • 6A Single Phase Single Pole Socket Type EMI Filter (Model: CW1D-6A-T)
6A Single Phase Single Pole Socket Type EMI Filter (Model: CW1D-6A-T)6A Single Phase Single Pole Socket Type EMI Filter (Model: CW1D-6A-T)6A Single Phase Single Pole Socket Type EMI Filter (Model: CW1D-6A-T)6A Single Phase Single Pole Socket Type EMI Filter (Model: CW1D-6A-T)6A Single Phase Single Pole Socket Type EMI Filter (Model: CW1D-6A-T)

6A Single Phase Single Pole Socket Type EMI Filter (Model: CW1D-6A-T)

  • Rated Current: 6A
  • Hi-Pot Test 1: 1450VDC,2 Sec (Line to Line)
  • Hi-Pot Test 2: 2250VDC,2 Sec(Line to Gound)
  • Design Referenced Standard: CSA22.2 No. 8 1996, IEC/En 60939
  • Description:
  • INQUIRY   EMAIL
CW1D Single Phase Single Pole Socket Type EMI Power Filter






Features

1. IEC Connector Integrative Filter
2. General purpose, compact, easy for installation and use
3. Exceptional conducted attenuation performance
4. High performance to cost make
5. Optional medical versions (M type)
6. Approval: CQC CE RoHS




Application

Available for mini to middle size electronic equipments and measuring instruments, computer, communication equipment, LCD TV, Electronic toys, Medical equipment and medical typical applications.



Technical Data

Rated Voltage: 125/250VAC or customized
Operation Frequency: 50/60Hz
Rated Current: 1-10A
Hi-pot Test: 1450VDC, 2 sec (Line to Line)
2250VDC, 2 sec (Line to Ground)
Climate Category: 25/85/21 (-25ºC to +85ºC)
Design corresponding to UL1283, CSA22.2 NO.8 1996, IEC/EN 60939




Electrical Schematic

3A Single Phase Single Pole Socket Type EMI Filter with Ce RoHS Certificate (CW1D-3A-T)


Outline Dimension

3A Single Phase Single Pole Socket Type EMI Filter with Ce RoHS Certificate (CW1D-3A-T)



Insertion Loss





Basic Parameters
Model Rated Current (A) L (mH) Cx(uF) Cy(nF)
CW1D-3A-T 3 2 x 1.8 0.1 2 x 3.3
CW1D-6A-T 6 2 x 0.8 0.1 2 x 3.3
CW1D-10A-T 10 2 x 0.3 0.1 2 x 3.3
