Single Phase Single Pole Socket Type EMI Filter

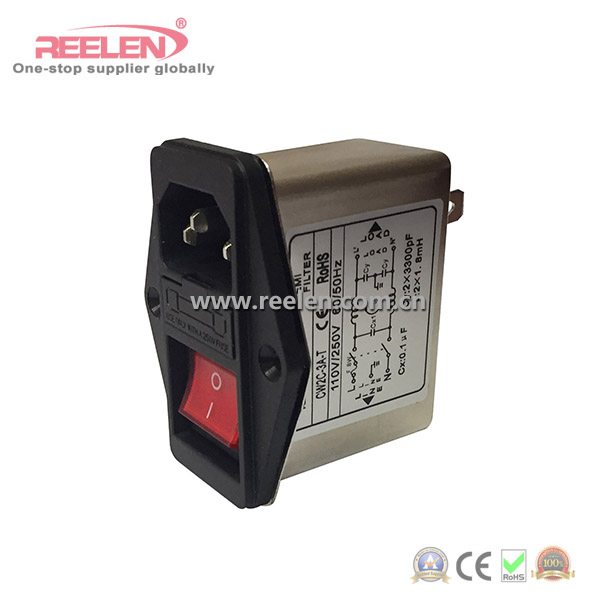

  • 3A Single Phase Single Pole Socket Type EMI Filter (Model: CW2C-3A-T)
3A Single Phase Single Pole Socket Type EMI Filter (Model: CW2C-3A-T)

3A Single Phase Single Pole Socket Type EMI Filter (Model: CW2C-3A-T)

  • Rated Current: 3A
  • Hi-Pot Test 1: 1450VDC,2 Sec (Line to Line)
  • Hi-Pot Test 2: 2250VDC,2 Sec(Line to Gound)
  • Design Referenced Standard: CSA22.2 No. 8 1996, IEC/En 60939
  • Description:
  • INQUIRY   EMAIL
CW2C Single Phase Single Pole Socket Type EMI Power Filter






Features

1. IEC Connector Integrative Filter with 1 Fuse and Switch
2. General purpose, compact, easy for installation and use
3. Practical solution to help your facility pass EMI system approval in short time
4. High performance to cost make
5. Optional medical versions (M type)
6. Approval: CQC CE RoHS




Application

Available for portable electronic equipments and measuring instruments,and apply to consumer goods, single phase power supplies, switch-mode power supplies, and Medical equipment and medical typical applications, low leakage current.



Technical Data

Rated Voltage: 125/250VAC or customized
Operation Frequency: 50/60Hz
Rated Current: 1-10A
Hi-pot Test: 1450VDC, 2 sec (Line to Line)
                    2250VDC, 2 sec (Line to Ground)
Climate Category: 25/85/21 (-25ºC to +85ºC)
Design corresponding to UL1283, CSA22.2 NO.8 1996, IEC/EN 60939




Electrical Schematic

3A Single Phase Single Pole Socket Type EMI Filter with Ce RoHS Certificate (CW2C-3A-T)


Outline Dimension






Insertion Loss





Basic Parameters

Model Rated Current (A) L (mH) Cx(uF)   Cy(nF)
CW2C-3A-T 3 2 x 1.8 0.1 2 x 3.3
CW2C-6A-T 6 2 x 0.8 0.1 2 x 3.3
CW2C-10A-T 10 2 x 0.3 0.1 2 x 3.3
