Three Phase Three Line Bolt Type EMI Filter

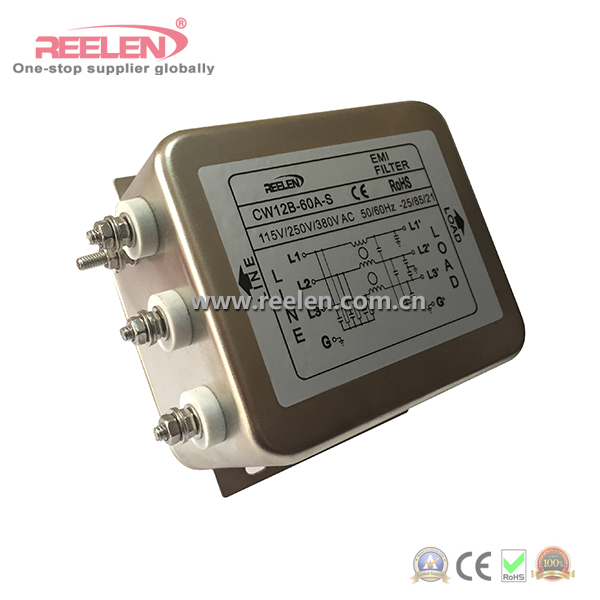

  • 60A Three Phase Bolt Type EMI Filter (Model: CW12B-60A-S)

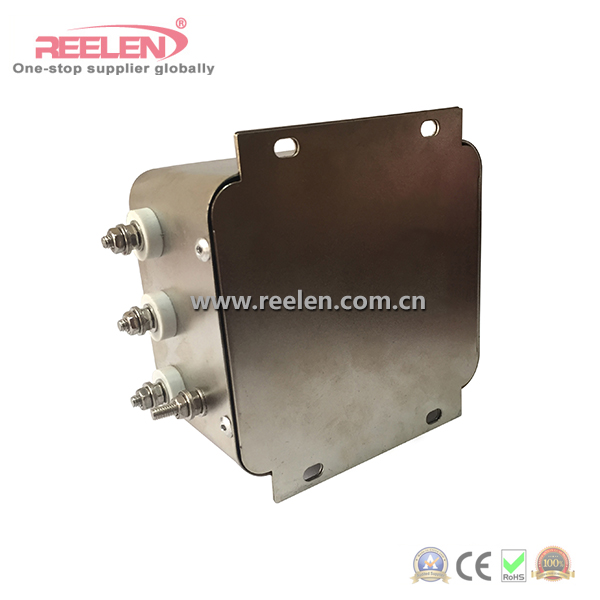

  • 60A Three Phase Bolt Type EMI Filter (Model: CW12B-60A-S)

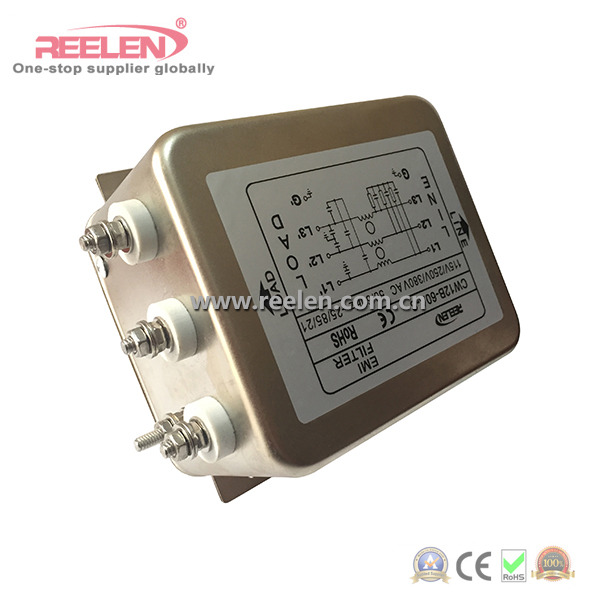

  • 60A Three Phase Bolt Type EMI Filter (Model: CW12B-60A-S)

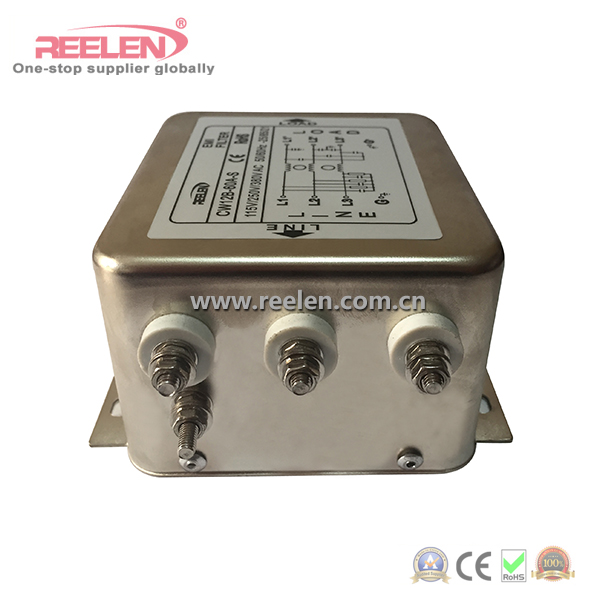

  • 60A Three Phase Bolt Type EMI Filter (Model: CW12B-60A-S)

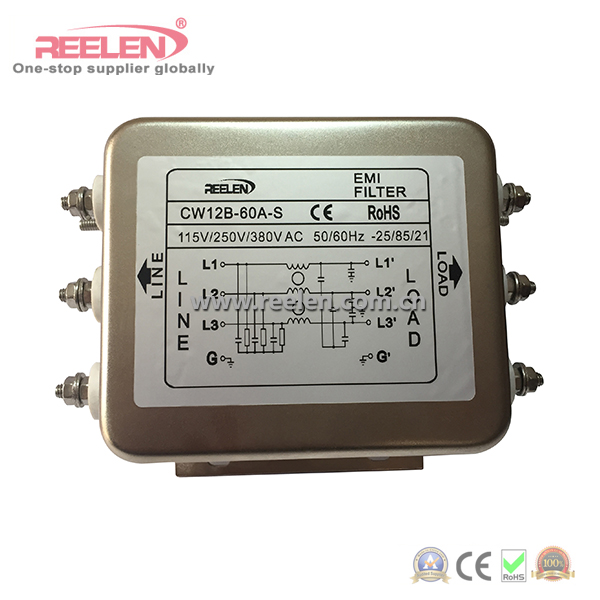

  • 60A Three Phase Bolt Type EMI Filter (Model: CW12B-60A-S)
60A Three Phase Bolt Type EMI Filter (Model: CW12B-60A-S)60A Three Phase Bolt Type EMI Filter (Model: CW12B-60A-S)60A Three Phase Bolt Type EMI Filter (Model: CW12B-60A-S)60A Three Phase Bolt Type EMI Filter (Model: CW12B-60A-S)60A Three Phase Bolt Type EMI Filter (Model: CW12B-60A-S)

60A Three Phase Bolt Type EMI Filter (Model: CW12B-60A-S)

  • Rated Current: 60A
  • Hi-Pot Test 1: 1450VDC,2 Sec (Line to Line)
  • Hi-Pot Test 2: 2250VDC,2 Sec(Line to Gound)
  • Design Referenced Standard: CSA22.2 No. 8 1996, IEC/En 60939
  • Description:
  • INQUIRY   EMAIL
CW12B Three Phase Three Line Bolt Type EMI Power Filter






Features

1. Resonable size
2. Compact, robust, general purpose three phase power line filter
3. High performance of differential mode and common mode performance
4. General purpose, compact, esay for installation and use
5. Approval: CQC CE RoHS




Application

Available for three phase variable speed motor drives, servo drives, inverters and converters, elevators, power supplies, UPS and further three phase, the filters are ideal for most motor drive applications.


Technical Data

Rated Voltage: 380/440VAC or customized
Operation Frequency: 50/60Hz
Rated Current: 1-60A
Hi-pot Test: 1450VDC, 2 sec (Line to Line)
2250VDC, 2 sec (Line to Ground)
Leakage Current: 20mA Max.
Climate Category: 25/85/21 (-25ºC to +85ºC)
Design corresponding to UL1283, CSA22.2 NO.8 1996, IEC/EN 60939




Electrical Schematic





Outline Dimension





Insertion Loss
