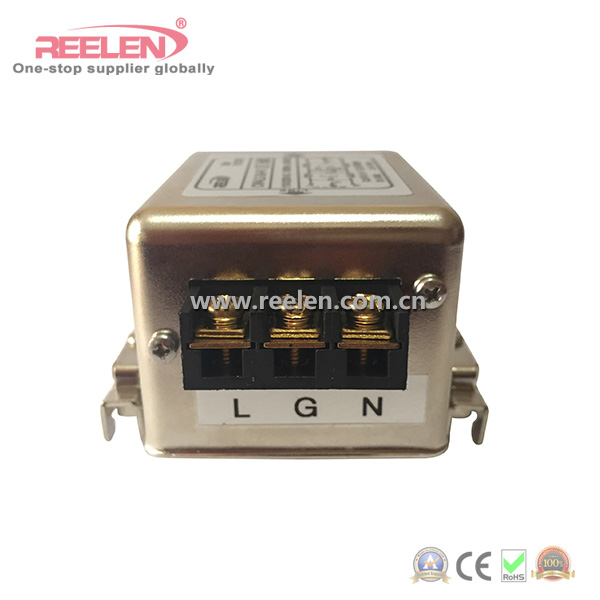

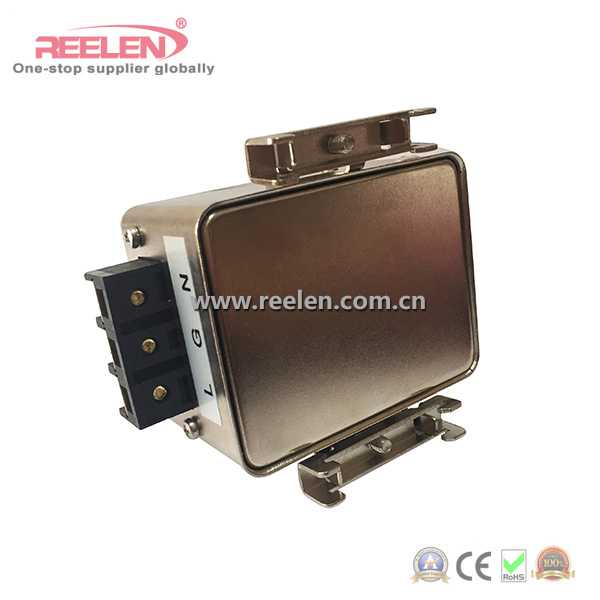

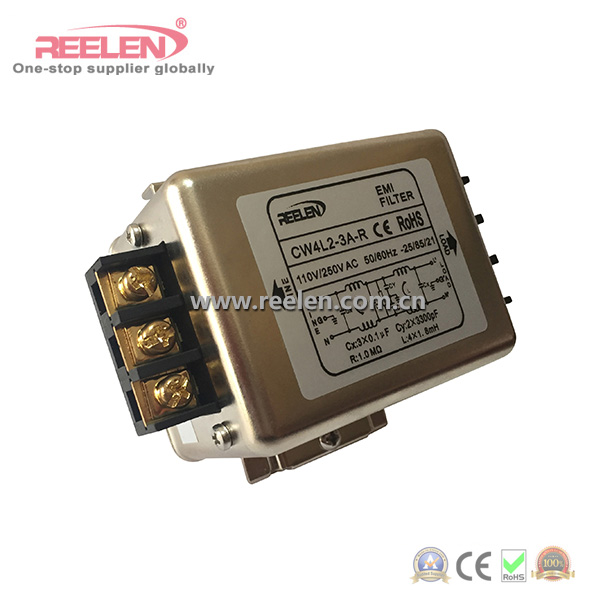

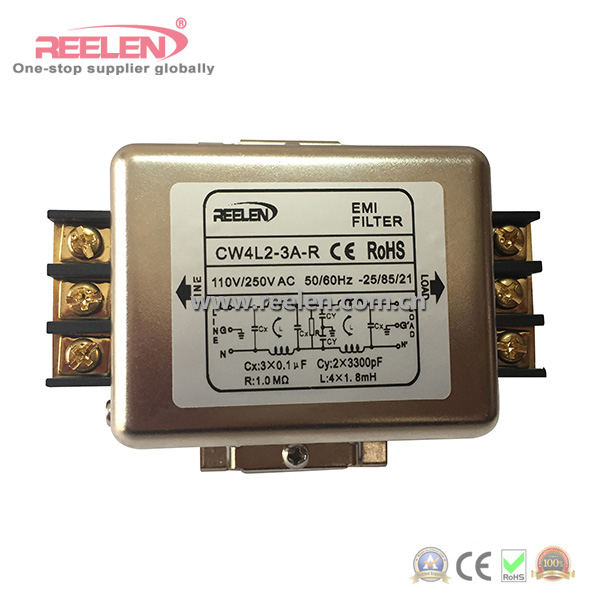

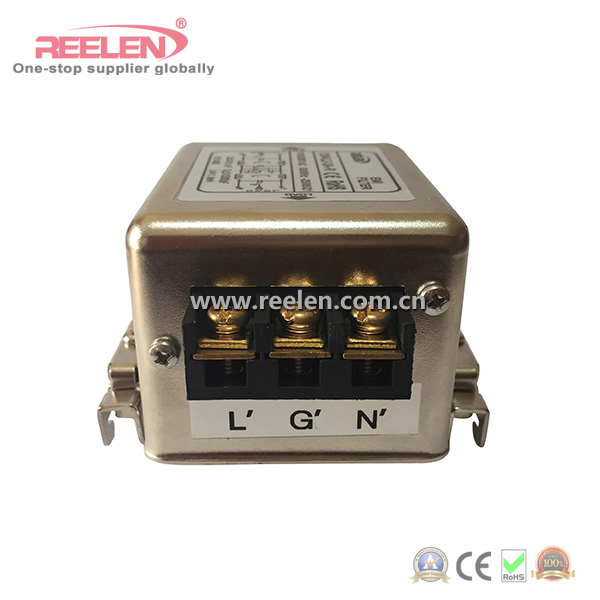

3A Single Phase Double Pole Guide Rail Type EMI Filter (Model: CW4L2-3A-R)

  • Rated Current: 3A
  • Hi-Pot Test 1: 1450VDC,2 Sec (Line to Line)
  • Hi-Pot Test 2: 2250VDC,2 Sec(Line to Gound)
  • Design Referenced Standard: CSA22.2 No. 8 1996, IEC/En 60939
  • Description:
  • INQUIRY   EMAIL
CW4L2-R Single Phase Double Pole Guide Rail Type EMI Power Filter






Features

1. High performance compact single phase filter with faston/nut
2. Good performance of common mode and differential mode interference suppression
3. General purpose, compact, esay for installation and use
4. Optional medical versions (M type)
5. Different output connections
5. Approval: CQC CE RoHS




Application

Available for digital systems (particularly for switching power supplies) to suppress the continuity or intermittent pulse interference, white goods with frequency inverters, inverter based control system, medical equipment and medical typical applications (low current leakage).



Technical Data

Rated Voltage: 125/250VAC or customized
Operation Frequency: 50/60Hz
Rated Current: 1-50A
Hi-pot Test: 1450VDC, 2 sec (Line to Line)
                    2250VDC, 2 sec (Line to Ground)
Climate Category: 25/85/21 (-25ºC to +85ºC)
Design corresponding to UL1283, CSA22.2 NO.8 1996, IEC/EN 60939




Electrical Schematic

3A Single Phase Double Pole Guide Rail Type EMI Filter with Ce RoHS Certificate (CW4L2-3A-R)



Outline Dimension





Insertion Loss






Basic Parameters

Model Rated Current (A) L (mH) R (MΩ) Cx(uF)   Cy(nF)
CW4L2-3A-R 3 4 x 1.8 1.0 2 x 0.1 2 x 3.3
CW4L2-6A-R 6 4 x 0.8 1.0 2 x 0.1 2 x 3.3
CW4L2-10A-R 10 4 x 0.3 1.0 2 x 0.1 2 x 3.3
CW4L2-20A-R 20 4 x 0.5 1.0 2 x 0.1 2 x 3.3
CW4L2-30A-R 30 4 x 0.5 1.0 2 x 0.1 2 x 3.3
CW4L2-40A-R 40 4 x 0.5 1.0 2 x 0.1 2 x 3.3
CW4L2-50A-R 50 4 x 0.5 1.0 2 x 0.1 2 x 3.3
