TNS Series Three Phase Servo Motor Ac Voltage Regulator

  • 6kVA Three Phase Full Automatic AC Voltage Stabilizer (Model: TNS-6kVA)
  • 6kVA Three Phase Full Automatic AC Voltage Stabilizer (Model: TNS-6kVA)
  • 6kVA Three Phase Full Automatic AC Voltage Stabilizer (Model: TNS-6kVA)
  • 6kVA Three Phase Full Automatic AC Voltage Stabilizer (Model: TNS-6kVA)
6kVA Three Phase Full Automatic AC Voltage Stabilizer (Model: TNS-6kVA)6kVA Three Phase Full Automatic AC Voltage Stabilizer (Model: TNS-6kVA)6kVA Three Phase Full Automatic AC Voltage Stabilizer (Model: TNS-6kVA)6kVA Three Phase Full Automatic AC Voltage Stabilizer (Model: TNS-6kVA)

6kVA Three Phase Full Automatic AC Voltage Stabilizer (Model: TNS-6kVA)

  • Input Voltage: 260-430VAC or Customized
  • Output Voltage: 380V+/-3% or Customized
  • Power Factor: Above 0.8
  • Display: LED,LCD or Sc Display
  • Description: TNS series high precision automatic three phase AC power supply, single phase TND (SVC) series of high precision automatic voltage power combination, three phase phase adjustment, ensure the safety of
  • INQUIRY   EMAIL
TNS Series Three Phase Servo Motor Full automatic AC Voltage Stabilizer






Specifications

1.Reasonable Price,Best Quality;
2.Reliable Performance;
3.Long-term With Simple Operation;
4.Servo motor drice;
5.Full Automatic Timely;
6.High accuracy;




Product Introduction

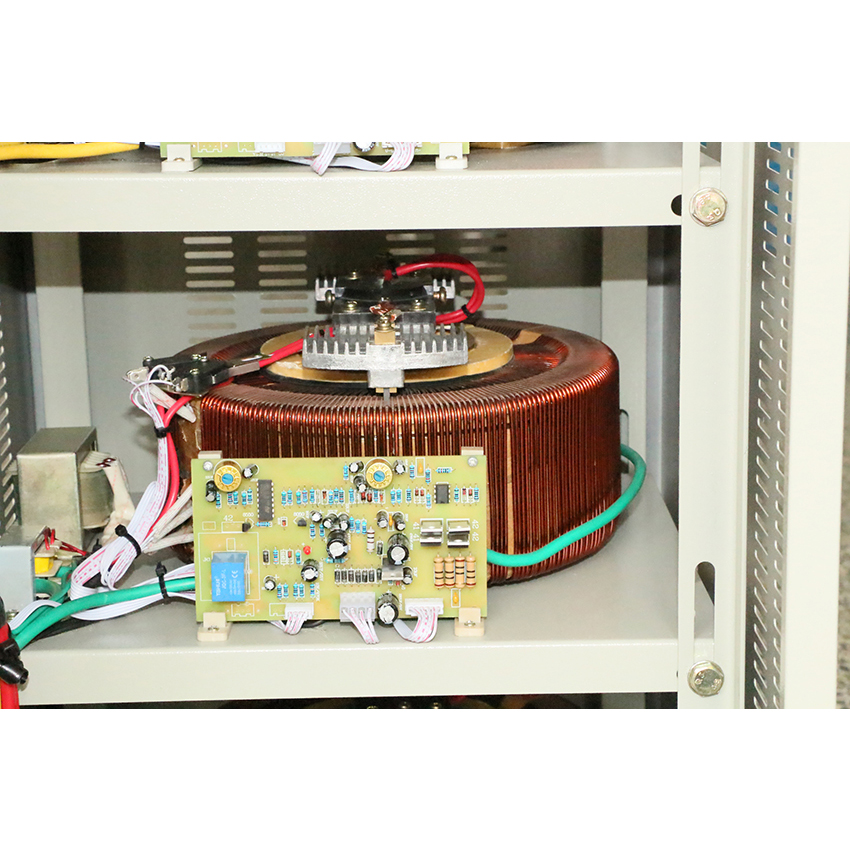

TNS series high precision automatic three phase AC power supply, single phase TND (SVC) series of high precision automatic voltage power combination, three phase phase adjustment, ensure the safety of each phase voltage, power input for three phase four wire system, star (Y) method, output three phase four wire and three phase three wire system consists of three current meter respectively indicating the output current of each phase, which is composed of a switch and a voltage meter to detect the phase shift output voltage.

20kVA and above specifications TNS series high precision automatic three phase AC voltage regulator, which is composed of three corresponding single phase automatic voltage stabilizer, and adopts auto-coupling.




Technical Parameter

1. Power Range: 1.5KVA-100KVA (three phase);
2. Input Voltage: Ordinary 260-430V, or optional larger range;
3. Output Voltage: 380V±3% (Special input and output center voltage, like 3 phase 220v, 400v, 415v, etc, can be customized);
4. Coil Material: Ordinary aluminum and copper mixed, full copper can be customized, please let us know when your place order;
5. Display: Ordinary meter type, LED or LCD display screen can be customized, please let us know when your place order;
6. Frequency: 50Hz/60Hz;
7. Adjusting Time: <1s ( when input voltage has a change of 10%);
8. Adjusting Speed: >15V/s;
9. Waveform Distortion: No additional waveform distortion;
10. Efficiency: >95%;
11. Relative Humidity: ≤95%;
12. Ambient Temperature: -5 ~ +40°C;
13. Dielectric Strength: 1500V/min;
14. Insulation Resistance: ≥2MΩ;
15. Packaging Detail: Standard Export Carton or Wooden Case And Colour Box Package




Applications

TV-SET / HI-FI / DVD / FAX / Copy Machine / Printer/ Scanner /Air Conditioner/Computer /Test Equipment/Fridge /Lighting/ Equipment ETC;
