Single Phase Single Pole Wire Out Type EMI Filter

  • 6A Single Phase Single Pole Wire out Type EMI Filter (Model: CW1B-6A-L)
  • 6A Single Phase Single Pole Wire out Type EMI Filter (Model: CW1B-6A-L)
  • 6A Single Phase Single Pole Wire out Type EMI Filter (Model: CW1B-6A-L)
  • 6A Single Phase Single Pole Wire out Type EMI Filter (Model: CW1B-6A-L)
  • 6A Single Phase Single Pole Wire out Type EMI Filter (Model: CW1B-6A-L)
6A Single Phase Single Pole Wire out Type EMI Filter (Model: CW1B-6A-L)6A Single Phase Single Pole Wire out Type EMI Filter (Model: CW1B-6A-L)6A Single Phase Single Pole Wire out Type EMI Filter (Model: CW1B-6A-L)6A Single Phase Single Pole Wire out Type EMI Filter (Model: CW1B-6A-L)6A Single Phase Single Pole Wire out Type EMI Filter (Model: CW1B-6A-L)

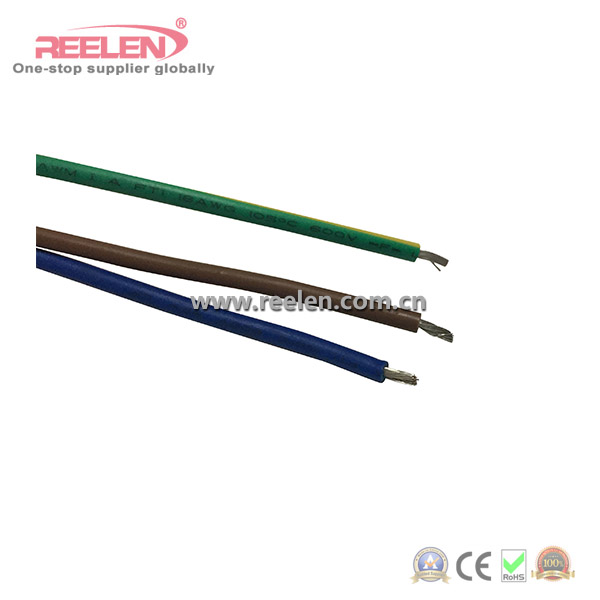

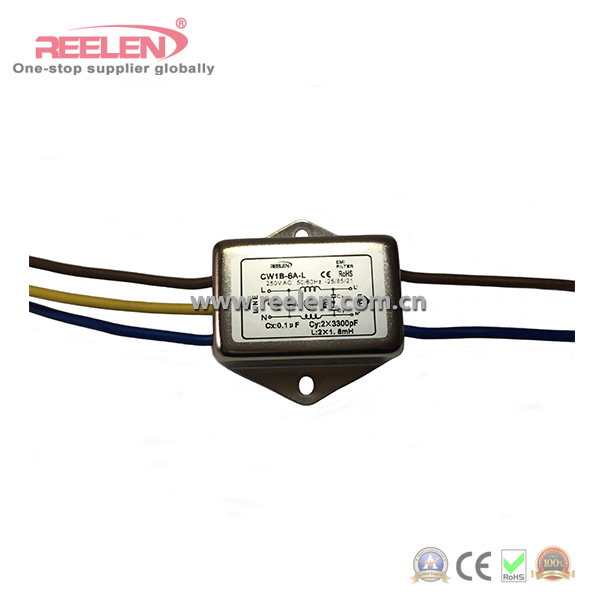

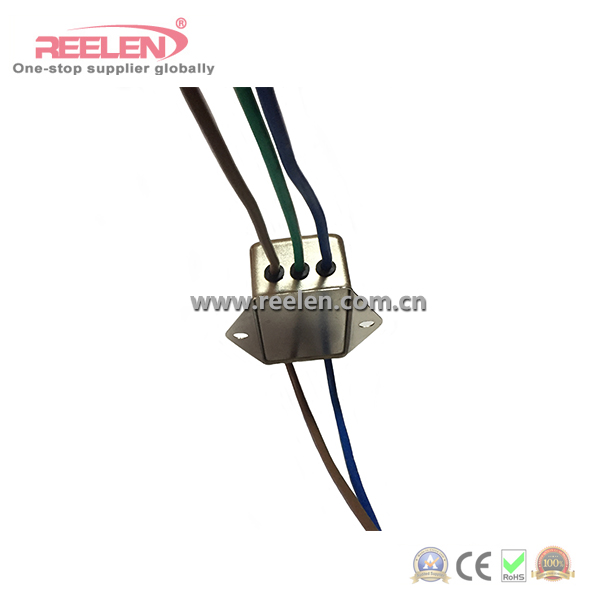

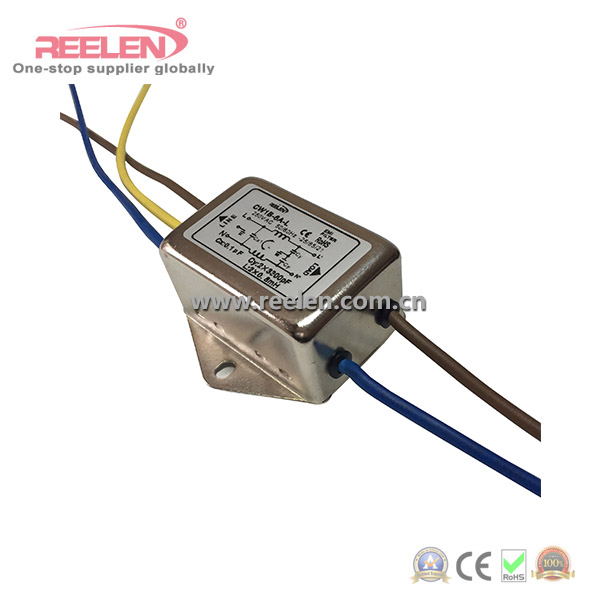

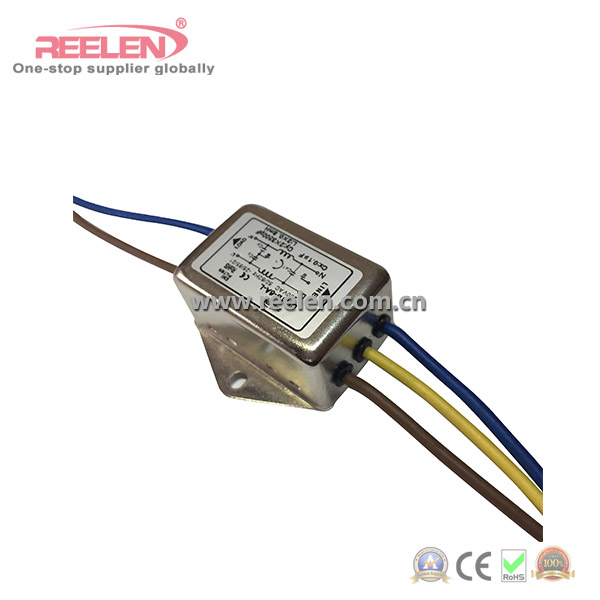

6A Single Phase Single Pole Wire out Type EMI Filter (Model: CW1B-6A-L)

  • Rated Current: 6A
  • Hi-Pot Test 1: 1450VDC,2 Sec (Line to Line)
  • Hi-Pot Test 2: 2250VDC,2 Sec(Line to Gound)
  • Design Referenced Standard: CSA22.2 No. 8 1996, IEC/En 60939
  • Description:
  • INQUIRY   EMAIL
CW1B Single Phase Single Pole Wire Out Type EMI Power Filter






Features

1. High performance compact single phase filter with faston/nut/wire terminal
2. General purpose, compact, easy for installation and use
3. Optional medical versions (M type)
4. Different output connections
5. Approval: CQC CE RoHS




Application

Available for electronic equipments, measuring instruments, white goods, single phase industrial equipments, power supply systems and controls, single phase power supplies, switch-mode power supplies, UPS and automative equipments, medical equipments and medical typical applications (low current leakage).



Technical Data

Rated Voltage: 125/250VAC or customized
Operation Frequency: 50/60Hz
Rated Current: 1-10A
Hi-pot Test: 1450VDC, 2 sec (Line to Line)
2250VDC, 2 sec (Line to Ground)
Climate Category: 25/85/21 (-25ºC to +85ºC)
Design corresponding to UL1283, CSA22.2 NO.8 1996, IEC/EN 60939




Electrical Schematic

3A Single Phase Single Pole Wire out Type EMI Filter with Ce RoHS Certificate (CW1B-3A-L)


Outline Dimension






Insertion Loss






Basic Parameters
Model Rated Current (A) L (mH) Cx(uF) Cy(nF)
CW1B-3A-L 3 2 x 1.8 0.1 2 x 3.3
CW1B-6A-L 6 2 x 0.8 0.1 2 x 3.3
CW1B-10A-L 10 2 x 0.3 0.1 2 x 3.3
