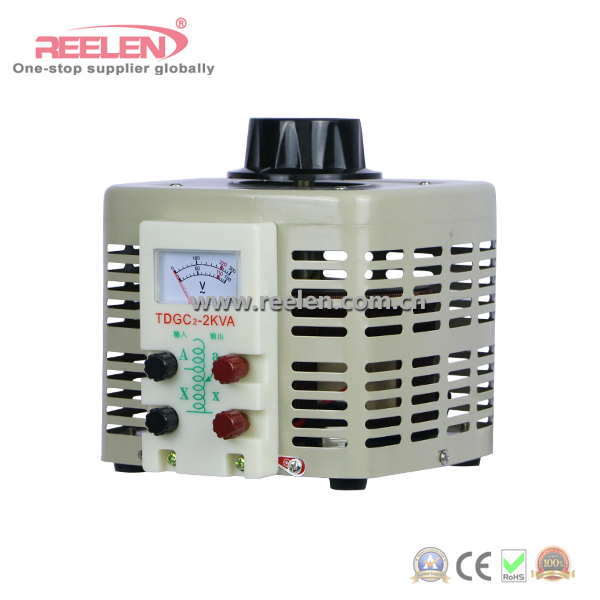

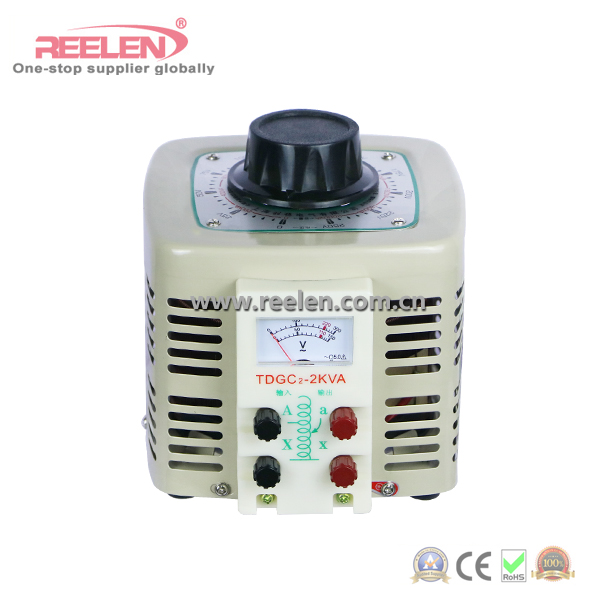

TDGC2 Series Single Phase Contact Type Ac Voltage Regulator
3kVA Single Phase Contact Type AC Voltage Regulator (Model: TDGC2-3kVA)
Input Range: 220V or Customized
Output Range: 0~250V or Customized
Display: LED or LCD or Pointer
Adjusting Time: <1s
Description: TDGC2/TSGC2 series single phase/three phase contact type voltage regulator (Variable transformer) is an new type products with quadrangle outline and small handwheel, this series voltage regulator als
TDGC2 series single phase contact type voltage regulator
GENERAL
TDGC2/TSGC2 series single phase/three phase contact type voltage regulator (Variable transformer) is an new type products with quadrangle outline and small handwheel, this series voltage regulator also have the advantage of good apperance, rational construction, no waveform distortion, small size, high efficiency, esay to use, reliable operation etc., the performance is more superior.
Application
This kind of voltage regulator can be applied in industry, scientific experiment, public facilities and domestic appliances to achieve the goal of voltage regulating, temperature controlling, light regulating, power controlling and so on.
Model and Its meaning
Main Technical Parameters
Note: Regulator insulation grade is B grade, carbon brush contact point temperature rise limit value should not more than 90 degree. (use semiconductor thermometer method measure)
