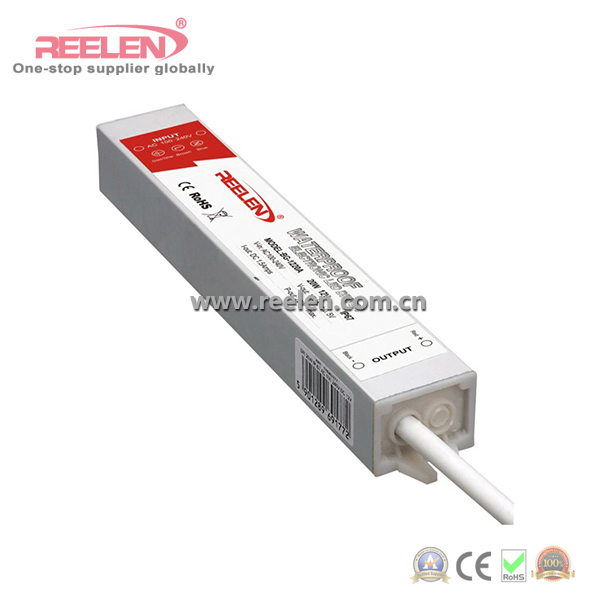

LPS Series Waterproof IP67 Aluminium Shell LED Driver

  • 20W Waterproof IP67 Constant Voltage LED Power Supply (Model: LPS-20-12/24)
20W Waterproof IP67 Constant Voltage LED Power Supply (Model: LPS-20-12/24)

20W Waterproof IP67 Constant Voltage LED Power Supply (Model: LPS-20-12/24)

  • Input: 90-264VAC
  • In-Out: Booster Type
  • Modulation System: PWM
  • Safety Standard: En60950
  • Description:
  • INQUIRY   EMAIL


LPS Series Waterproof IP67 Constant Voltage LED Power Supply






Features

1.IP67

2.High Efficiency and good price

3.Built-in EMI filter

4.100% full load burn-in test

5.Low output ripple and noise

6.Protection:Over load/Over voltage/Short circuit

7.2 years warranty



Technical Parameters

Model LPS-20-12 LPS-20-24
DC output voltage 12V 24V
Output voltage error ±1% ±1%
Rated output current 1.67A 0.83A
Output current range 0-1.67A 0-0.83A
Wave and noise 100mVp-p 100mVp-p
Inlet stability ±0.5% ±0.5%
Load stability ±1% ±0.5%
DC output power 20W 20W
Efficiency 81% 83%
AC input voltage range 90-264VAC  47-63Hz; 250-370VDC
Input current 0.5A/115V  0.25A/230V
AC impulse current Cold-start current 30A/250V
Leakage current <0.5mA/240VAC
Over load protection 105%~150%  rated output power
Type:pulsing hiccup shutdown  Resete: auto recovery
Over voltage protection 121%~142% Rated output voltage
Protection:Shut down output voltage
short circuit protection Protection:Hiccup mode,recovers automatically after fault condition is removed
Temperature coefficient ±0.03%/°C (0~50°C)
Setup rise hold up time 100ms,60ms / 230VAC at full load
Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,Each along X,Y,Z axes
Withstand voltage I/P-O/P:1.5KVAC  I/P-FG:1.5KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH
Working temperature and humidity -10~+60°C, 20~90%RH
Store temperature and humidity -20~+85°C, 10~95%RH
Overall dimension 182×29×20mm (L×W×H)
Weight 0.22Kgs; 100pcs/22.7Kg/0.88CUFT
Safety standards Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
